Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth

Top Fencing Co.Limited
Contact Now

Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth

Brand Name : LNF Stainless Steel Wire Mesh

Model Number : Stainless Steel Wire Mesh

Certification : ISO

Place of Origin : China

MOQ : 1 Roll

Price : 138.88$-8789$/roll

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 15 days

Packaging Details : metal pallet

Application : Filters,Woven Wire Mesh,mining,Protecting Mesh,Circuit board printing

Weave style : Plain Weave,twill weave,Plain/Twill Weave,Dutch/Plain/Twill Weave,twill or dutch

Type : Weave Wire Mesh,Wire Cloth,Welded Mesh,Chain Link Mesh,Linear

Technique : Woven,Welded Mesh

Material : Stainless Steel Wire,304,316,imported wire 304N,SUS stainless steel

Wire diameter : Requirement,0.1-5MM,0.02-2mm,0.018mm-2.5mm,BWG33-BWG16

Width : Usually1M,0.5m-3m or customized,1-2meters,1m,102mm

Product name : Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh,Stainless Steel Security Wire Mesh,SS304 316 dutch weave micronic stainless steel wire mesh,Food grade 100 micron stainless steel wire mesh

Usage : oil,space flight,filter,Printing,chmical industry

Length : 1-30m,30mtr 60mtr,30m/roll 50m/roll or as required,30m per roll or as required,30m-100m or customerized

Feature : Acid-resisting,corrosion resistent etc.,Anti-corrosion,alkali resist,alkali-resisting etc

Color : Silver,steel

Hole shape : Square Hole,triangular tunnel openings,rectangle hole

Mesh : 1-3200mesh,3-500 MESH,1-635mesh

Advantage : Superior wire,standard mesh,factory direct sale,competitive price

Mesh count : 1-400mesh,1x1-635x635mesh/inch,2-635mesh

Sample : Avaliable

Name : Welded Wire Mesh Fence,304 316 20Mesh Plain Woven Stainless Steel Wire Mesh

Packing : paper tube inside+ wodden box +plastic bag +,waterproof paper,Wooden carton,plastic film

Contact Now

Our primary focus is the manufacture of woven wire mesh and cloth, especially in stainless steel, for industrial uses, chemical fiber, mining, filtration, and a wide range of uses. Stainless Steel Wire Mesh & Cloth, as an ideal filter medium, stands out when solutions for precise filtration and excellent corrosion resistance are needed. It excels in giving problem-free screening and is easily cleanable with excellent durability. The space wire weaves in square opening or rectangular openings can be woven down to a fineness of 5 micron aperture, also there are many combinations of filter weaves with retention in the micron range.

Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth

Material: Stainless steel, plain steel,brass ,copper.

Filtration grade: From 3 μm up to 10 mm All products can be ultrasonically cleaned, if requested!

Weave style: plain (twill weave are available upon request), Single-strand multi-strand weave.

Structure: single-layer network, Multi-layer film filter, combined filter film,with rim .

Rim: Stainless steel, aluminium.

Application: Plastic, rubber, chemical fiber, hot melt adhesive.

Product Display

Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth

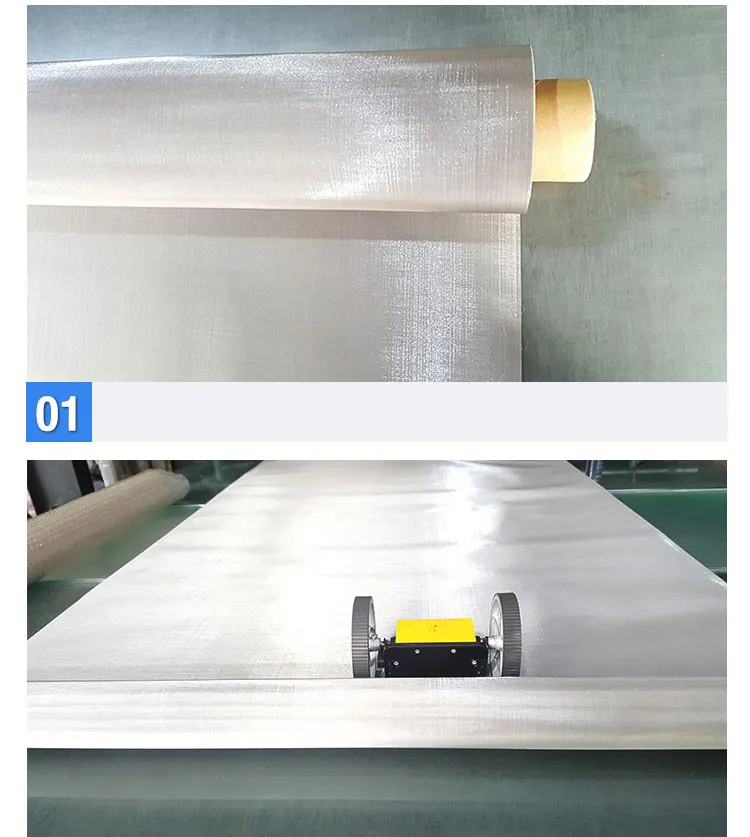

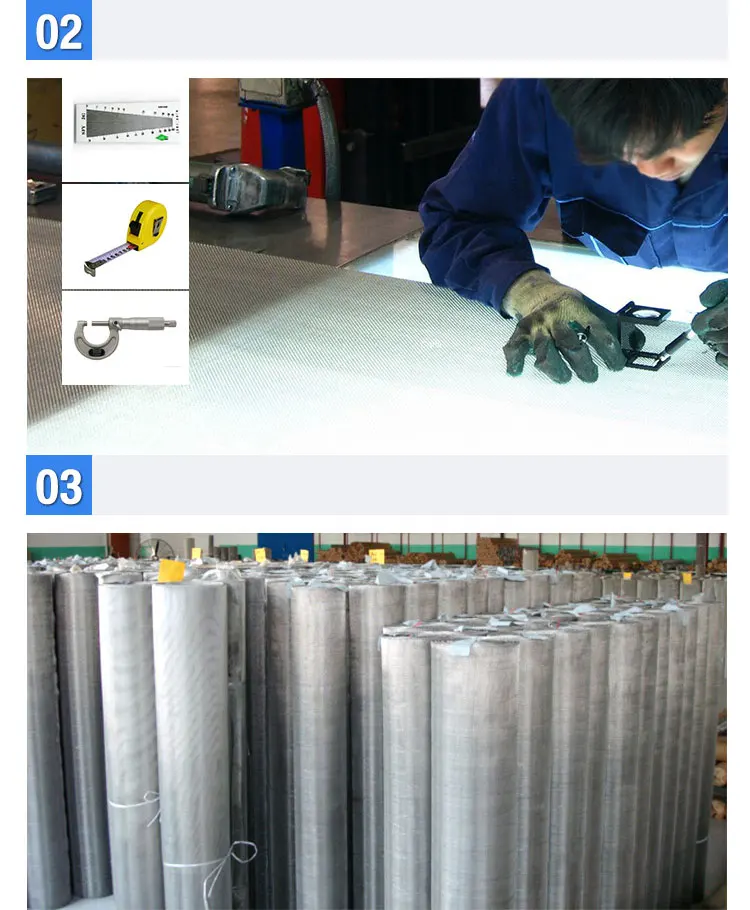

Product Process

Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth

Packaging & Shipping

Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth

Product Application

Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth

Related products
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
stainless steel wire mesh
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth

Usage: Filters, sieve, chemical industry, mine industry, paper-making , etc

Material: SS 201,202,304,304L, 316,316L, 321, 430, etc

Woven style: Plain, Twill, Dutch Twill, Reverse Dutch, Five-Heddle

Mesh : 1-635mesh

Diameter: 0.0008"-0.08"

Packaging Details: Inner kraft, outside plastic cloth,put into wooden pallet or case

Delivery Time: 5 days for stock material

Have exported: USA, EU, Japan and etc

Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
Type Mesh/Inch

Wire diameter

(inch)

OPen Area Weight (LB) /100 Square Foot
Plain,Twill Weave Wire Mesh 1 × 1-635 × 635 0.0008"-0.08" 25 to 84.6 2.53 to 41.1
Type Mesh/Inch

Wire diameter

(inch)

Absolute Filtration Finess µm Nominal Filtration Finess µm
Plain Dutch Weave Wire Mesh 8 × 85-80 × 400 0.014'' × 0.0126''- 0.0049'' × 0.0028'' 318-340 to 43-48 250-255 to 35-40
Twill Duntch Weave Wire Mesh 20 × 250 - 500 × 3200 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' 110-120 to 8-9 98-105 to 2-3
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & ClothStainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
Material
stainless steel wire 201,202,304,304L, 316,316L, 321, 430, etc
Standard Roll Width
1m-48''
Standard Roll Length
30m(100')
Fine Mesh
From 0.5mm To 0.025mm Hole Size
Coarse Mesh
From 2mm To 0.5MM Hole Size
Heavy Duty
From 10mm To 2MM Hole Size
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
Stainless Steel Wire Mesh 316L Stainless Steel Wire Mesh & Cloth
