HDG chain link fence Hot-sell chain link diamond wire mesh fence

Name: HDG chain link fence Hotsell chain link diamond wire mesh fence
Brand: LNF-Chain link Wire
Price: 8.88 USD

Best HDG chain link fence Hot-sell chain link diamond wire mesh fence wholesale

Brand Name : LNF-Chain link Wire

Model Number : 2.75" mesh

Certification : ASTM392 ASTM396

Place of Origin : American ,Australia ,Canadan

MOQ : 500 liner meter

Price : 8.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 steel

Color : Any Ral Color

Treatment : Hot Dipped Glavanized,Powder Coated

Mesh Opening : 65mm x 65mm 50mm x 50mm ,55mm x 55mm ,75mm x 75mm ,60mm x 60mm ,80mm x 80mm,40mm x 40mm ,30mm x 30mm

Diameter : 1.5mm to 5.00mm

Type : Woven Mesh

Warranty : 5 -25 years depand on the treatment

Main Market : Europea ,Middle East ,USA ,AU etc

Accessoires : Tension Band ,Bar ,Steel Plate and Post Caps etc

Customized : Available

Feature : Diamond Mesh

Application : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence,and Son

Trade Mark : N/M Cyclone Fence

Sample : Free but pay freight cost

Nickname : CYCLONE FENCE,wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence

Contact Now

HDG chain link fence Hot-sell chain link diamond wire mesh fence

Chain Link Fencing is the product for security because of its strength and long term durability. It is also corrosion resistant, easy to install, versatile and perhaps most of all, a great value for money.
 Our fences are available in different styles, heights & colors, can be custom-made according to client's request. The fences come with posts, gates and all necessary fittings if you need.
 Please feel free to ask any further question you may have or let us know if you would like to view more pictures.

Product Name	chain link fence
Material	steel
Color	green black sliver, Any color
Use	Pet kennels ,Yards,Parks,industry
Weave style	Plain weave
Mesh opening	60x60mm,50x50mm,75x75mm
Wire diameter	1-7mm
Height	4,5,6,8ft
Length	10m,20m,30m,40m etc

Details Images


Product features

CAD drawings

Exclusive drawing for each client.
 Our engineer will make exclusive chain wire fence drawing for you to check.

Product Application

Mainly used in sports field, basketball field, park, garden, green field, parking field, architecture, waterways, side slope soil, residence safeguard etc.

Product packaging

Woven bags of the above and bottom, high quality package or as customers requested.
In roll, waterproof paper in side and our side with weave bag; carton; wooden case; pallet.
According to client's requirement.

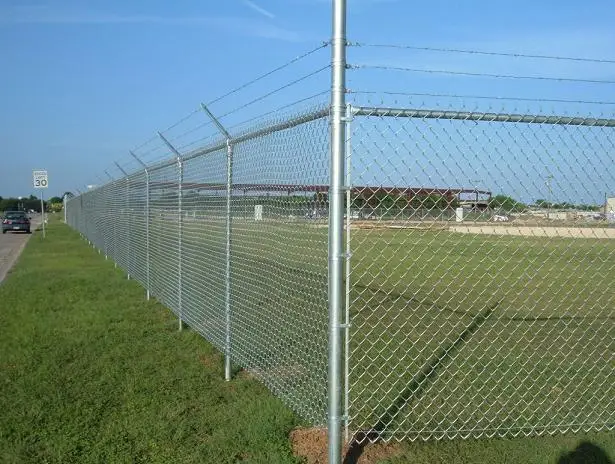

1) Introduction of the chain link wire mesh fence:

chain link wire mesh fence also named diamond wire mesh, is woven from high-quality steel wire, by a high precision wire netting machine.

chain link fencing with uniform mesh hole, flat surface, beautiful appearance, great corrosion resistance, long service life.Does not dag or roll up at the bottom.

A) chain link fencing Materials: high-quality low carbon steel wire, stainless steel wire, Al-alloy wire.
B) Chain link fence Surface treatment: electric galvanized, hot galvanized, PVC.

Characteristic of the chain link wire mesh fence:
With wide applications, convenient installation, competitive prices, this kind of item is very favorable for the users. Using high-quality steel as raw material, the fabricated panel's body is very strong resistance strength. It's well suitable for a wide range of application, for example for enclosing Lawn, Road.

2) the main specifications of chain link wire mesh fence:

opening	1"	1.5"	2"	2.25"	2.4"	2.5"	3"	4"
opening	25mm	40mm	50mm	55mm	60mm	65mm	76mm	100mm
wire diameter	18#7#
wire diameter	1.20mm5.00mm
length	1.0m50m
width	0.5m5.0m
Materials, specifications according to customers request

other special specifications are also available.
Any questions, please do not hesitate to contact me.

Galvanized chain link wire mesh fence
	13-12 Gauge(2.4mm-2.7mm)	12-11 1/2 Gauge(2.7-2.9mm)	11 Gauge(3mm)
APPLICATIONS	Economy	Standard Residential	Light Commercial
MESH SIZE	2 3/8"(60mm)	2"(50mm), 2 3/8"(60mm), 1 1/4"(30mm)	2"(50mm)
COATING	Galvanized before weaving	Galvanized before weaving	200g/m2
HEIGHTS	36"-157"(0.9m-4m)
SELVAGE	Knuckle & Knuckle; Barbed & Barbed; Knuckle & Barbed(Wire Diameter≤2.5mm)
STANDARD ROLL	50ft(15m) per roll
MEETS OF EXCEEDS	-	ASTM-A-392	ASTM-A-392
IDEAL USES	Light residential fencing. Temporary construction fencing	Resident, Kennel, Swimming Pool	Tennis Courts, airport, field, prison, security fence

PVC Coated chain link wire mesh fence	11Gauge (2.0/3.0mm)	9 Gauge (2.7/3.7mm)	8 1/2Gauge(3.0/4.0mm)
MESH SIZE	1 1/4"	2"	2"(50mm), 2 3/8"(60mm)
COATING THICKNESS	0.5mm	0.5mm	0.5mm
HEIGHTS	36"-157"(0.9m-4m)
SELVAGE	Knuckle & Knuckle; Barbed & Barbed; Knuckle & Barbed(Wire Diameter≤2.5mm)
STANDARD ROLL	50ft(15m) per roll
COLORS	Green, Black, White, Grey, and etc..

3) Packaging of the chain link wire mesh fence Roll
Wrap up the two edges of the crimpled rolls with the weaving bags. or Your Customized Packing is Available

4) chain link wire mesh fence Post with fittings:

Item	Diameter	Wall thickness
Line post	2" 3" 3-1/2" 4"	2mm 3mm 4mm
Corner, pull& end post	3" 3-1/2" 4"	2mm 3mm 4mm
Top, bottom & brace rail	1.66" 2"	1.5mm 2mm

5) chain link wire mesh fence Fittings:

1. Post rain cap( Loop cap, rail end cap, etc)
2. Tension bar ( connecting chain link fabric and line post)
3. Tension band/ brace band
4. Tension wire
5. Wire tensioner/Short winder
6. Tie wire
7. Extension Arm
8. Top rail sleeve

6) chain link wire mesh fence Purposes&Applications:
highways, golf courses, parks, warehouses, zoo fence, fence construction sites, mine protection, captive breeding of poultry, green slope, pipe insulation with net Landscaping earth-fixing, such as slope protection.

7) Welcome to contact us to make an inquiry for more prices information and visit us at any time!

HDG chain link fence Hot-sell chain link diamond wire mesh fence
