6'x10' temporary fence panels OD 41.2mm outer tube wall thick 1.60mm mesh 57mm x 57mm diameter 3.00mm
Temporary chain link fence is also called mobile fence mesh, chain link fence panel. Our temporary chain link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular in Australia, American, England, Africa market .Temporary Chain Link Fence uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.
In addition, temporary chain link fence with wire diameter of 9 gauge, 11 gauge and 11.5 gauge, 2'', 2-1/4'', 2-2/5" mesh opening, frame outside diameter of 1-1/4" and 1-3/8'',plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.
| Material | Galvanized wire; PVC Coated a wire |
| Wire Dia | 1.5mm--4.0mm |
| Opening | 40*40mm; 50*50mm; 60*60mm; 75*75mm |
| Size | 6'Hx10'L; 8'Hx10'L; 8'Hx12'L etc |
| Frame | OD25mm; OD32mm; OD48mm |
| Frame thickness | 1.5--3.0mm |
| Base | 30'' x 18'' or others according to your requirement |
Advantage:
-
Easy installation or maintenance replacement
-
Can be easily relocated
-
Minimum repair required only damaged panels to be replaced
-
Standard/custom modular sizes
Use:
-
Construction sites and private property
-
Residential housing sites and schools
-
For major public events, sports, concerts, festivals, gatherings, Sports playground or swimming pools.
-
Traffic control and crowd control.
It was exported to Qatar, Kuwait, U.S.A, Lebanon, Australia, etc.
Key Features
• Cost effective security fencing manufactured in 50mm x 50mm diamond shape mesh
• Available in green, black and galvanized.
• Available in heights, 0.9m, 1.2m,1.5m, 1.8m, 2.1m, 2.7m & 3.0m
• Quick and easy installation to any type of concrete steel or timber posts
Our most popular size Height: 6’ and Length:12’ is for construction, municipalities, schools, events and
residential projects.
Height: 8’ and Length: 12’ for large construction and commercial projects that gives you that added level
of security and safety.
| 6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft Temporary Chain Link Fence Panel |
| Design | North America,Australia & New Zealand |
| Made | China |
| 1) Panel Specification |
| Panel Size | 6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft |
| Frame | 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional. |
| Chain Link Mesh Wire | 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional |
| Chain Link Mesh Size | 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional. |
| Brace | Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D |
| Treatment | Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised |
| Standard (Standard panels include barbed wire as extra security) | AS 1725-2010 – Chain – Link Fabric Security Fences and Gates. AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use. AS 54687-2007 – Temporary Fencing and Hoarding. |
| 2) Steel Feet Specification |
| Size | 750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base |
| Treatment | Hot dipped Galvanised; |
| 3) Clamp Specification |
| Size | Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C); |
| Treatment | Hot Dipped Galvanised; |

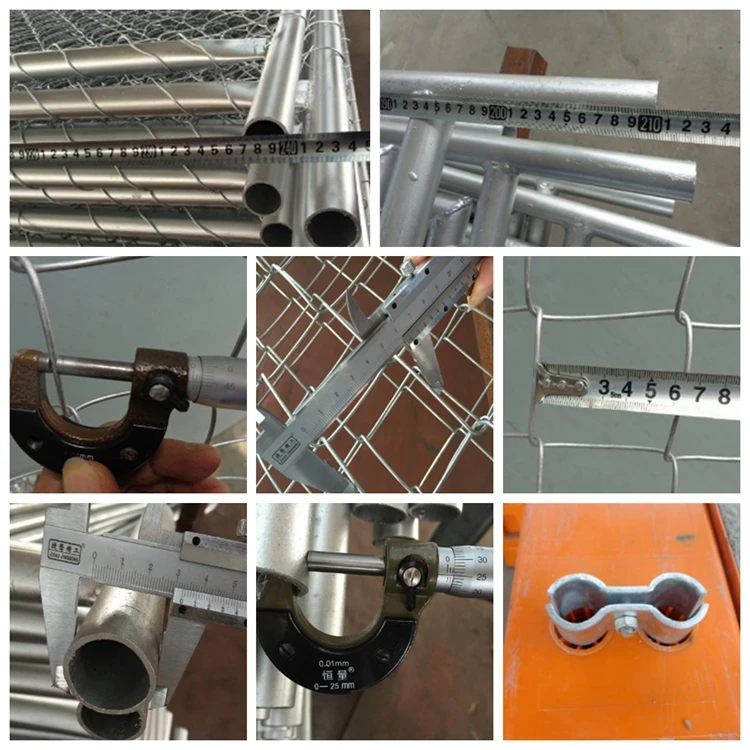

1. Temporary Chain Link Fence Quality Testing
resistance in an outdoor construction site.
360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure.
This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not
be corroded even in hostile environment.
Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and sometimes
wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.
Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.
2. Temporary Chain Link Fence Stands Types
Our Temporary chain link Fence Panel stands (footings) are constructed from galvanized 1'' or 1-3/8"
diameter tubing and welded into an approximate 16" x 36" rounded rectangles. With two smaller diameter
uprights welded in place to accept the outer frame, these stands ensure stability and reliability.
3. Temporary Chain Link Fence Saddle Clamp
Each panel is further reinforced with Galvanized saddle clamps, nuts, bolts used to connect two panels together.
4. Temporary Chain Link Fence Loading
DB Chain link Panel Fencing is an excellent perimeter security solution , and easy to transport and
secure into place, above-ground panel fencing provides a sturdy and reliable fence for many job-site
applications.

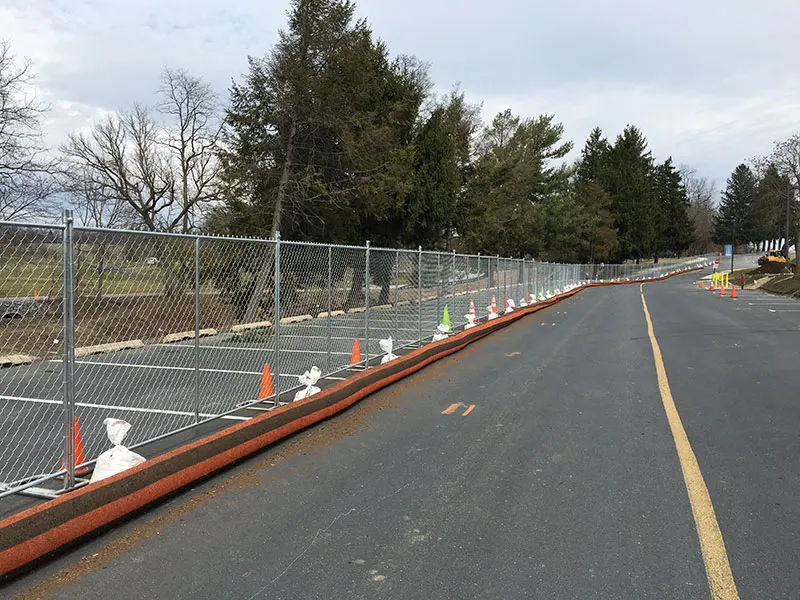

Some of the most common uses for temporary chain link panels include:
• Commercial Construction Sites
• Housing Developments
• Highway projects
• Remodels & store front renovation
• Public Works Projects
• Post-Disaster Reconstruction
We've seen chain link fencing. This is because chain link is known to be economical and durable. Combine that with flexible installation and it has remained the choice of thousands of homeowners for years. The good news is that chain link fences don't have to be unsightly nor do they only have to be plain chain link.
Detailed Images
6 x 10 chain link fence panels specification as follow:
| Material | Electric galvanized wire,hot dipped galvanized wire,hot dipped galvanized tube |
| Size | 1.8*3.6m |
| Hole size | 50*50mm,60*60mm,75*75mm |
| Wire thickness | 2.5mm,3.0mm,3.5mm |
| Tube size | 32*1.5mm,38*1.5mm,48*1.5mm |
| Base size | 570*400mm |

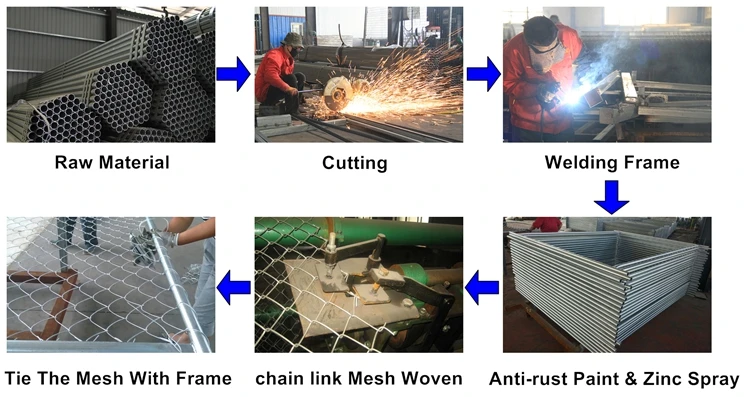

6*10 chain link fence panels production process:
Control quality

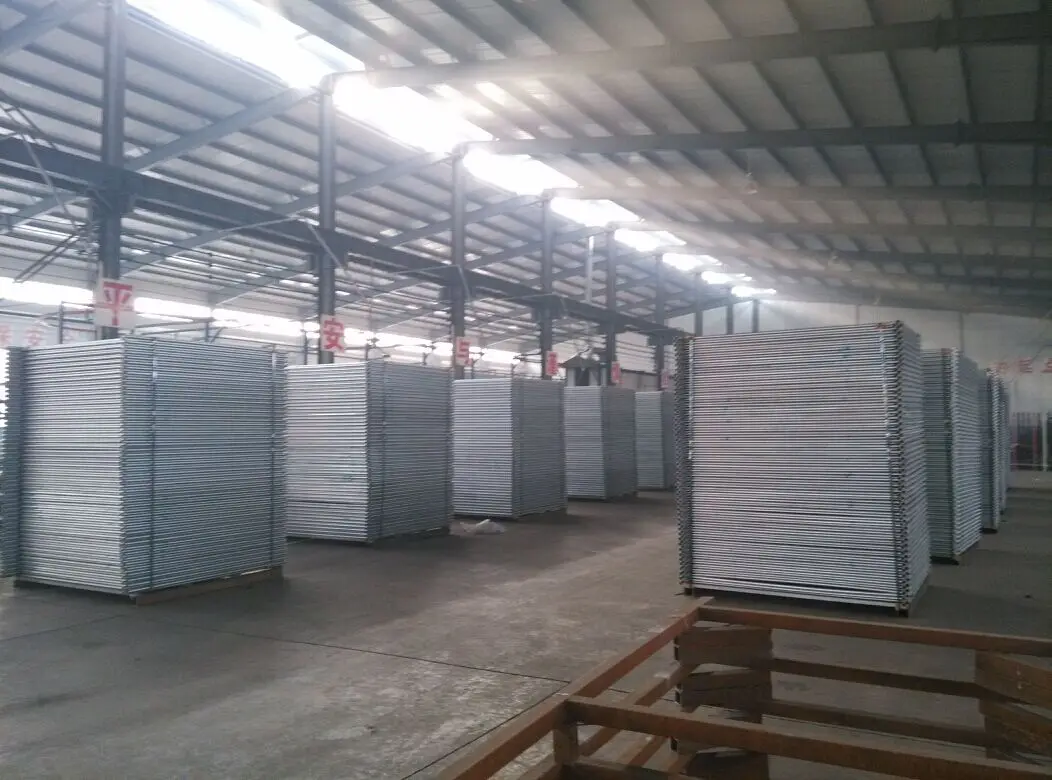

Packaging & Shipping

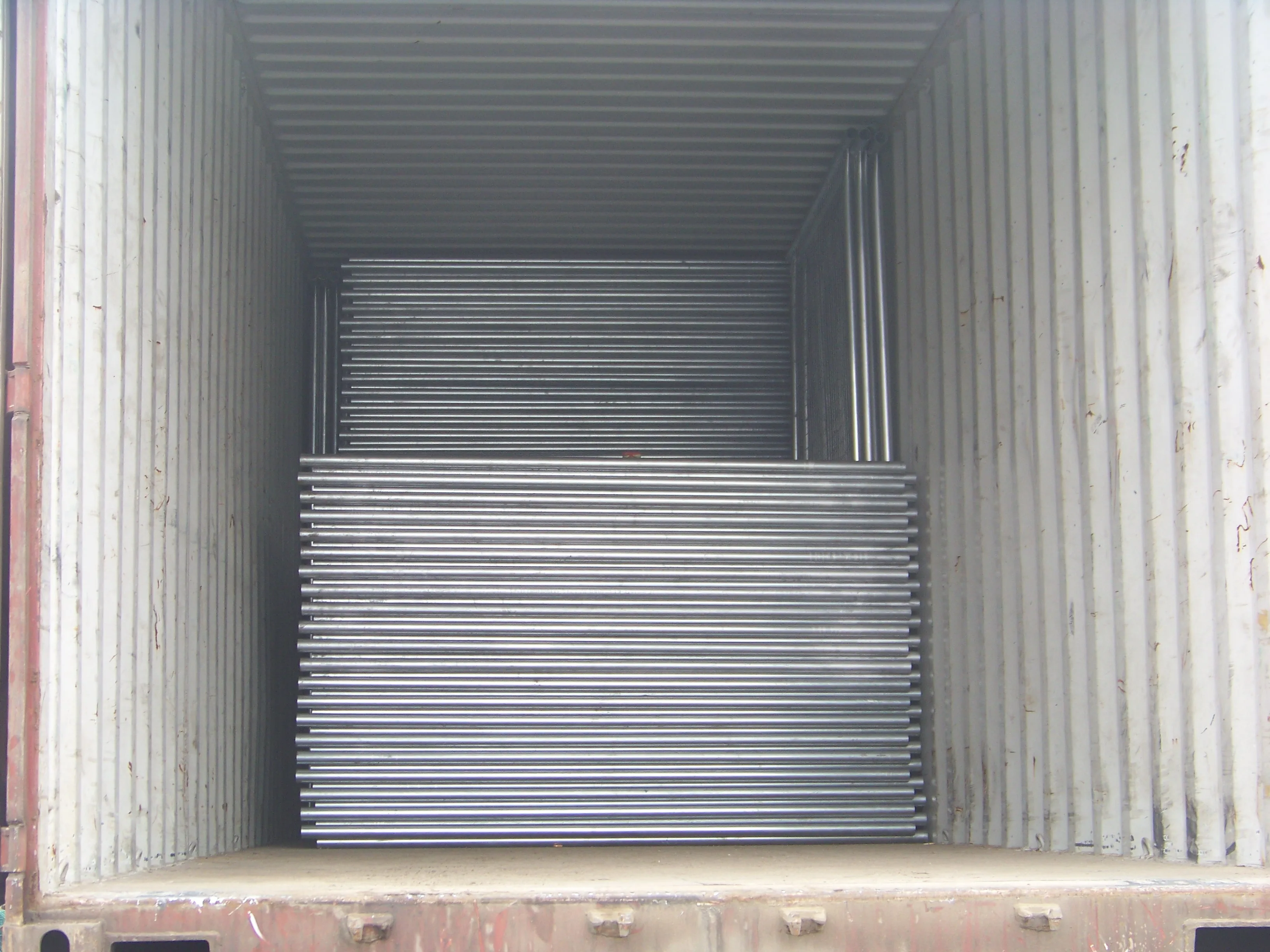

6*10 chain link fence panels packed in bulk
|
|
6'x10' temporary fence panels OD 41.2mm outer tube wall thick 1.60mm mesh 57mm x 57mm diameter 3.00mm Images
|
