Stainless Steel Wire Rope Ferrule Mesh Guardrail Protection Net Of Elevated Walkway

Top Fencing Co.Limited
Contact Now

Stainless Steel Wire Rope Ferrule Mesh Guardrail Protection Net Of Elevated Walkway

Brand Name : LNF-ROPE MESH

Model Number : ROPE MESH 2"

Certification : ISO

Place of Origin : AUSTRALIA

MOQ : 100sqm

Price : 12.88$/m2

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 10000 sqm per week

Delivery Time : 5 work days

Packaging Details : Australia Standard Stillage

Material : Stainless Steel Wire,316L stainless steel,Galvanized Steel Wire

Application : Protecting Mesh,Filters,Woven Wire Mesh,decorative cable mesh

Type : Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh

Weave style : Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave

Technique : Woven,Welded Mesh,Perforated,Weave

Feature : Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance

Wire diameter : Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized,1/16"

Usage : filter,Protection,decorative wire mesh,oil,aviary mesh

Hole shape : Diamond,Square Hole,Rectangular,as per requirement,round hole

Color : Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized

Product name : SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird

Width : 0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m

Length : 30m,2-4m,30m per roll or as required,1-30m,30m/roll 50m/roll

Surface treatment : polishing,black/ pre-gal/hot dip gal,Mill.Coloer Finish

Sample : Available,Free

Mesh size : 8-500 mesh,20mm-160mm,as your requirement

Size : 3"*3",4"*4",1"*1",1.5"*1.5",Customized

Advantage : Superior wire,no noise,corrosion resistance,High strength,Wear-resisting

Aperture : 25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized

Contact Now

Stainless Steel Wire Rope Ferrule Mesh Guardrail protection net of elevated walkway
Stainless Steel Wire Rope Ferrule Mesh Guardrail Protection Net Of Elevated Walkway

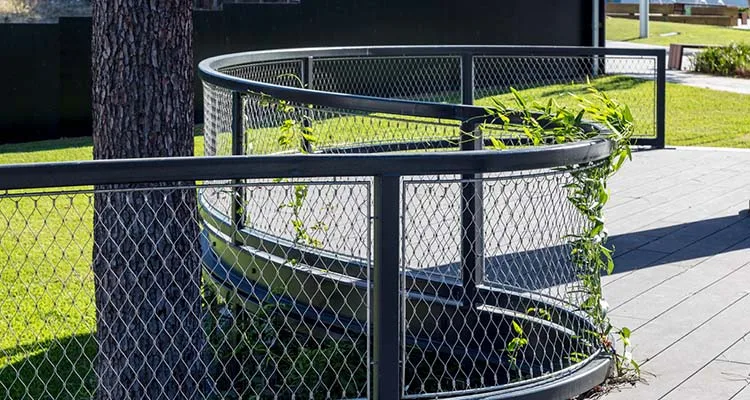

In addition to providing strength and safety, this modern design mode integrates perfectly with architectural metal ornaments in aesthetics.
Details Images

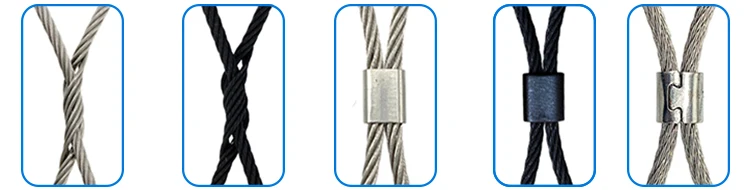

Stainless steel wire rope mesh is including two types
Stainless Steel Wire Rope Ferrule Mesh Guardrail Protection Net Of Elevated Walkway
Stainless steel cable woven mesh
(stainless steel sleeveless wire rope mesh)
Stainless steel cable ferrule mesh
(stainless steel sleeved wire rope mesh)
Stainless Steel Wire Rope Ferrule Mesh Guardrail Protection Net Of Elevated Walkway

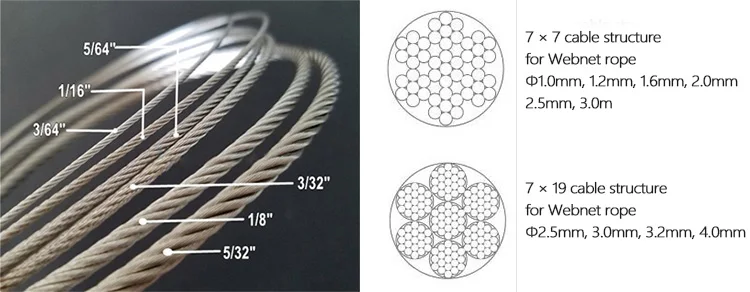

▼Material of stainless steel wire rope mesh: AISI 304 or 316 stainless steel
Stainless Steel Wire Rope Ferrule Mesh Guardrail Protection Net Of Elevated Walkway
We provide the regular specifications for your reference.
Cable structure
Cable diameter
Mesh opening size
Nominal break
inch
mm
inch
mm
Ibs.
7x19
1/8
3.2
4.75x4.75
120x120
1600
7x19
1/8
3.2
4x4
102x102
1600
7x19
1/8
3.2
3.55x3.55
90x90
1600
7x19
1/8
3.2
3x3
76x76
1600
7x19
1/8
3.2
2x2
51x51
1600
7x7
3/32
2.4
4x4
102x102
920
7x7
3/32
2.4
3.55x3.55
90x90
920
7x7
3/32
2.4
3x3
76x76
920
7x7
3/32
2.4
2.4x2.4
60x60
920
7x7
3/32
2.4
2x2
51x51
920
7x7
5/64
2.0
3x3
76x76
676
7x7
5/64
2.0
2.4x2.4
60x60
676
7x7
5/64
2.0
2x2
51x51
676
7x7
5/64
2.0
1-1/2x1-1/2
38x38
676
7x7
1/16
1.6
3x3
76x76
480
7x7
1/16
1.6
2x2
51x51
480
7x7
1/16
1.6
1-1/2x1-1/2
38x38
480
7x7
1/16
1.6
1.2x1.2
30x30
480
7x7
1/16
1.6
1x1
25.4x25.4
480
7x7
3/64
1.2
1-1/2x1-1/2
38x38
270
7x7
3/64
1.2
1.2x1.2
30x30
270
7x7
3/64
1.21
1x1
25.4x25.4
270
7x7
3/64
1.2
4/5x4/5
20x20
270

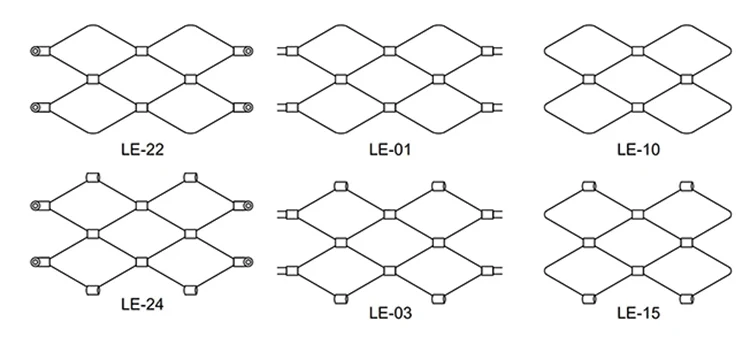

Possible Webnet perimeter types

Available LE01- LE30 edge design plans. Select suitable ferruled wire mesh edge pattern for install quickly and easily.
The following are common styles
Stainless Steel Wire Rope Ferrule Mesh Guardrail Protection Net Of Elevated Walkway
Installation accessories
Stainless Steel Wire Rope Ferrule Mesh Guardrail Protection Net Of Elevated Walkway
Product Application
In combination with architectural ropes mesh is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
Stainless Steel Wire Rope Ferrule Mesh Guardrail Protection Net Of Elevated Walkway

Features

1.The mesh is clipped to the cable.
2.The hole size and diameter can be modified. 3.It can be made to customer orders and statically tested – especially suitable for facades. 4.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment. 5.Anti-corrosive, resist the rust, can be repeated use. 6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI) 7.This product can bear the heavy snow and the gale very much. 8.Without toxic material, safety, environmental protection.
