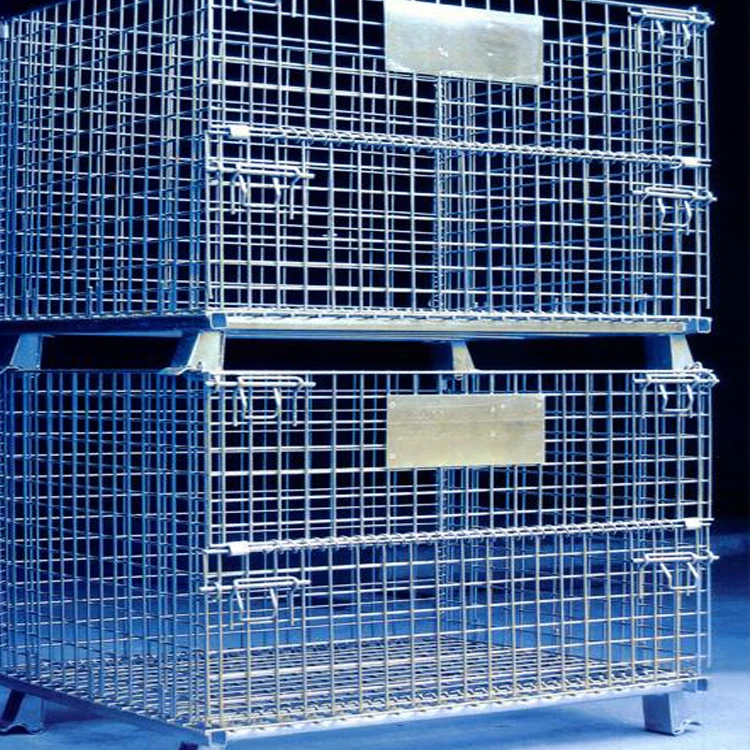

Warehouse Storage Pallet Cage Stackable Wire Mesh Metal Container

Name: Warehouse Storage Pallet Cage Stackable Wire Mesh Metal Container
Brand: lnf wire mesh container
Price: 38.88 USD

Best Warehouse Storage Pallet Cage Stackable Wire Mesh Metal Container wholesale

Brand Name : lnf wire mesh container

Model Number : 1030X840X850mm

Certification : sgs

Place of Origin : china

MOQ : 50pcs

Price : 38.88$-58.88$

Payment Terms : T/T

Supply Ability : 10000pcs

Delivery Time : 14 days

Packaging Details : metal pallet

Scale : Heavy Duty,Medium Duty,medium-duty container,light-duty

Capacity : 500-2000kg,0.5 CBM,800kg,50,1000kg

Type : Wire Container,Warehouse Tent,Foldable Rigid Container,Folding Container,Mobile Rack & Gravity Rack

Material : Steel Q235,Metal,Mild Steel,Tubes,Angle Steel

Surface treatment : Powder Coating,Electro Zinc Plated,Hot-Dipped Galvanized,Electro-Zinc Plated,Power coated/galvanised

Product name : storage cage,Selective Pallet Rack,cargo storage nesting metal steel wire mesh roll container,metal wire basket,Collapsible Small Stacking Storage Box

Color : Blue,Silver or customized,Customized,Galvanised/RAL system,Silver White

Size : customized,standard or customized,1200*1000*890mm,Can Make Per Customer's Requirement,Standard Size

Finish : Galvalized,Zinc plated/ Hot dip galvanized/Powder coating,Zinc Plated / Powder Coating / Paint /HDG,Expoxy Electrostatic Powder Coating,Pallet Bin

Feature : Collapsible,Stackable,Corrosion Protection,Foldable,folded and stackable

Usage : Warehouse,supermarket rack..etc,tool rack,Industrial rack,store

Loading capacity : 1300 kg,1500kgs,1000-2000KG Customized

Use : Warehouse Storage Racking,Industrial Warehouse Storage,storage,Warehose Rack

Wire dia : 6mm,6.4mm,7.8,4.8~5.6mm

Wire diameter : 5.0-8.0mm,6.4mm,5.8 mm

Product warranty : 1 year,2 year

Remark : Acceptable customized,Can make as customer size,As Customise

Available accessories : etc.,Top lid,runner bar,forklift guide and castors,divider

Mesh size : 50x50 (mm) or 50x100 (mm),50x100 mm,50*50mm

Contact Now

Warehouse Storage Pallet Cage Stackable Wire Mesh Metal Container

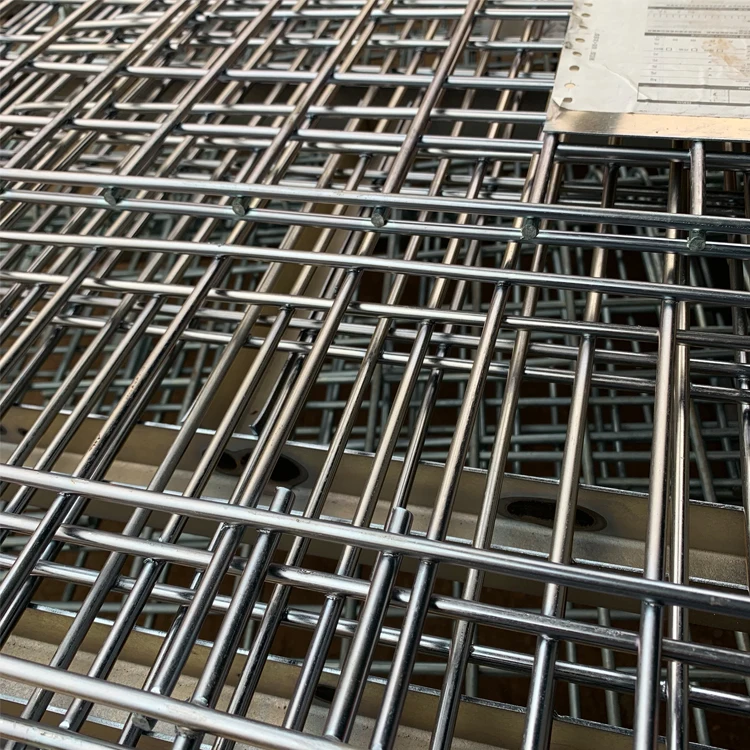

Stillage is consist of mesh and plate. The mesh is 5.8 or 6.2 master's fine line which is processed from Q235 by wiredrawing processing. The fine line was cut into various length, and then through the welding net, finally becoming the finished product. The mesh is processed by hot galvanizing. The chassis is bended plate whose thickness is 1.8mm or 2.5mm, and then be cut and welded manually into U-steel. Welding of the bottom mesh and U-steel is full-length welding, and each contact point of U-steel and mesh piece is putting through welding machine, so the bearing capacity is stronger. At last, the mesh plate and chassis are assembled by spring and return buckle.

Warehouse cage, also known as warehouse cage, butterfly cage, is a very important type of logistics containers in storage and transportation, with the storage of goods fixed capacity, stacked neatly, storage at a glance, easy to inventory and other advantages, but also improve the effective utilization of storage space.Storage cage can be freely folded, when not in use can also be folded storage, save warehouse space.

Wire Diameter ( mm)	Wire Mesh(Grid) (mm)	External Size (mm)	The Height of the foot (mm)	Capacity (kg)
6.0	50*50	800600640	100	800
6.0	50*50	1000800840	100	1200
6.0	50*50	12001000890	100	1500
6.4	50*50	1000800840	100	1500
6.4	50*50	12001000890	100	2000
6.4	50*50	1000800500	100	1000
6.4	50*100	100080840	100	1000
6.0	100*100	12001000890	100	500
6.4	50*100	12001000890	100	1000
4.8	50*50	1000800840	100	500
4.8	25*50	800500540	100	500

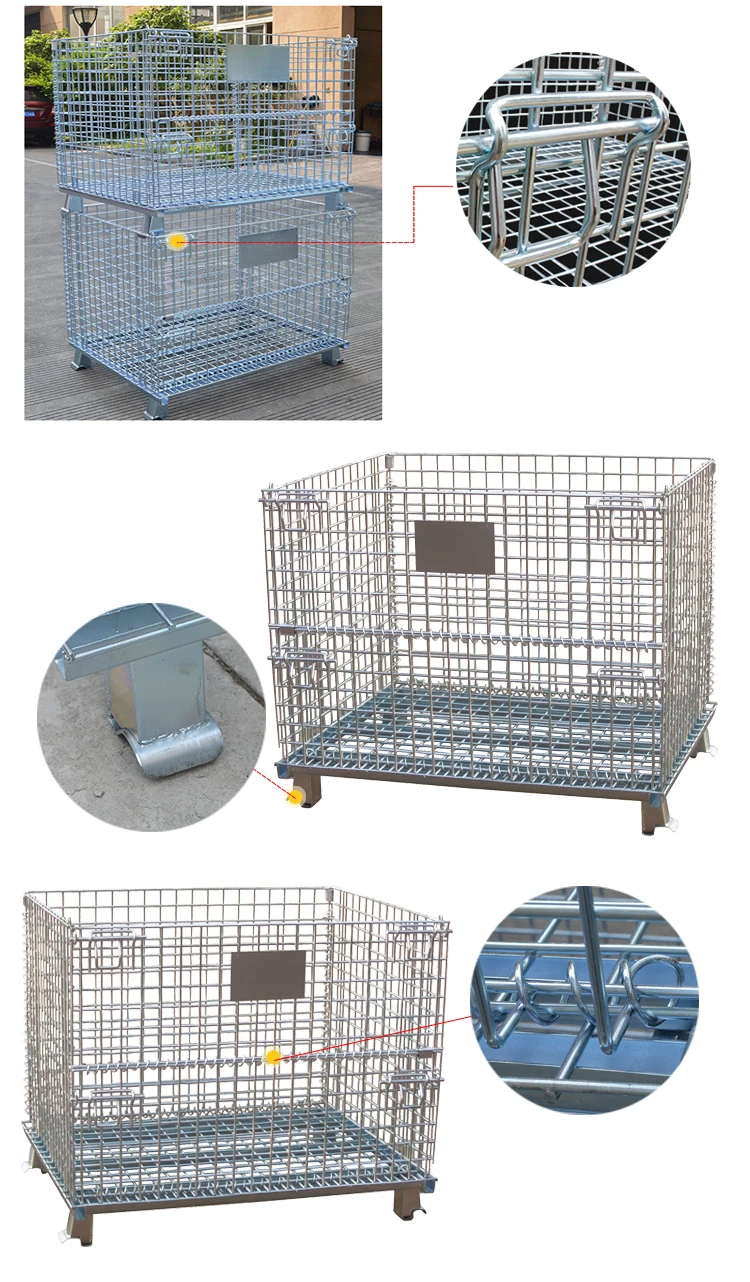

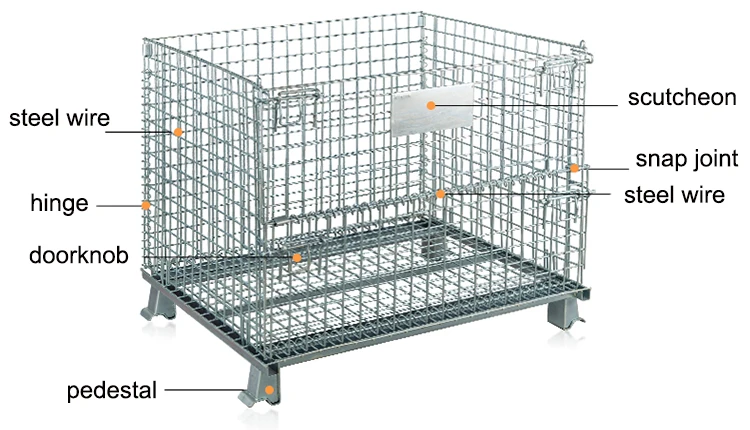

PRODUCT DETAILS

Warehouse Storage Pallet Cage Stackable Wire Mesh Metal Container

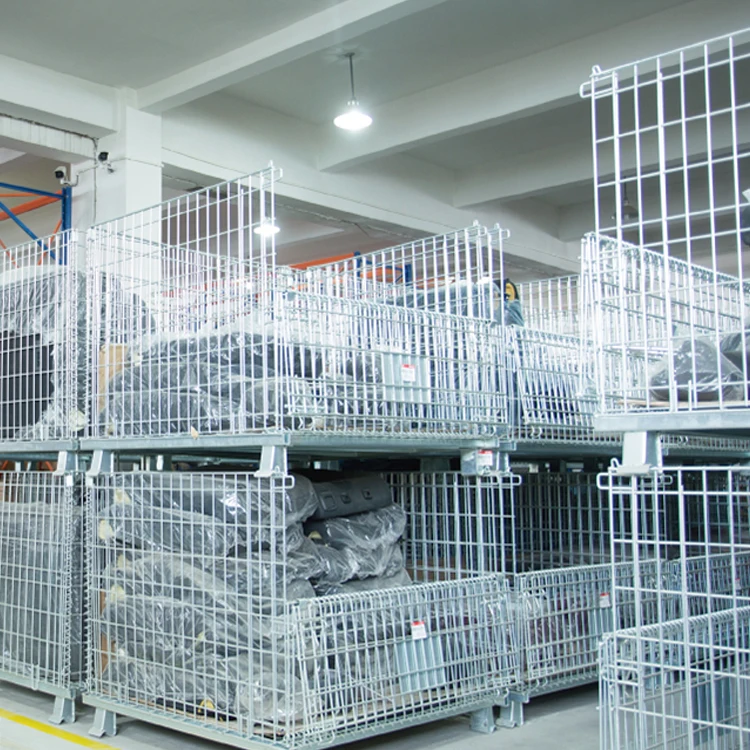

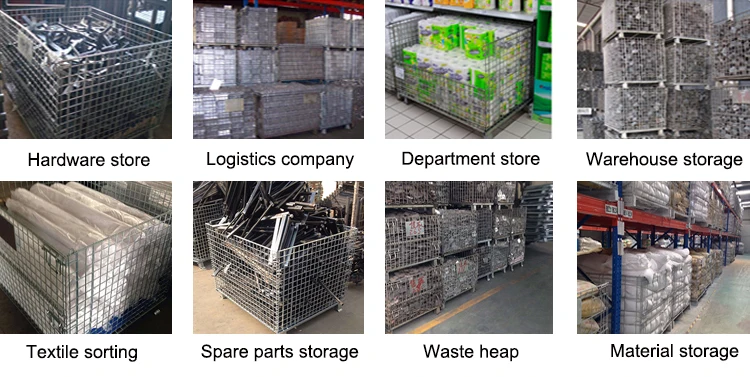

PRODUCT APPLICATION

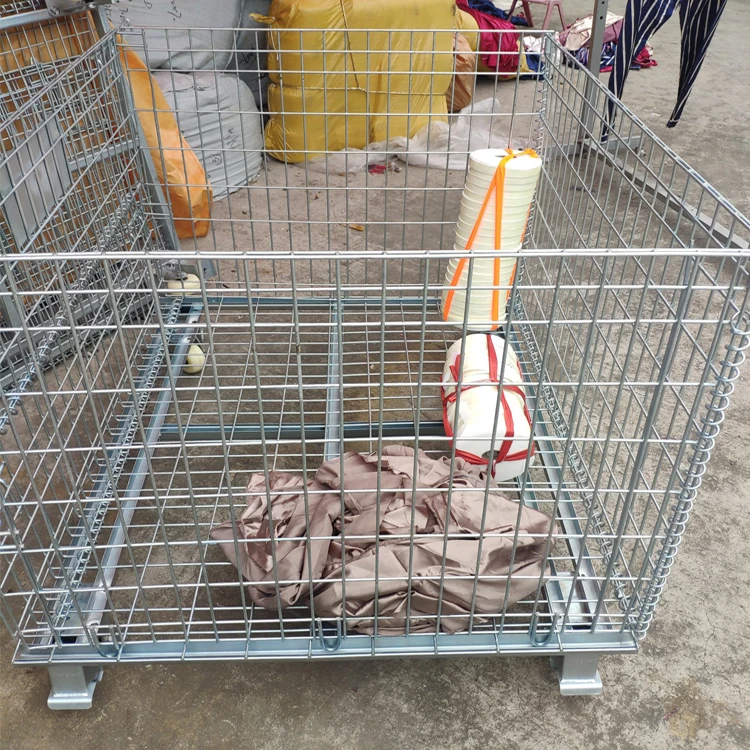

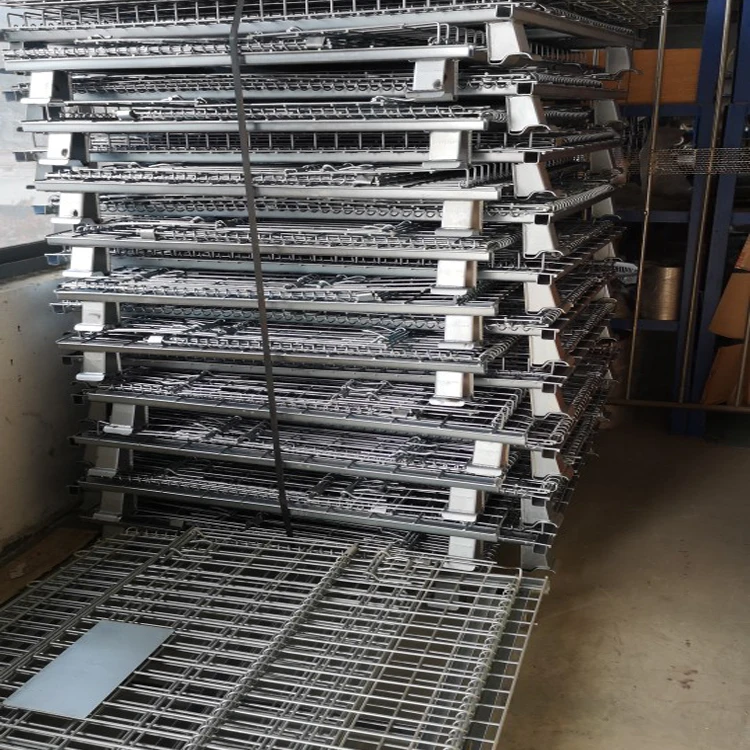

PRODUCT DISPLAY

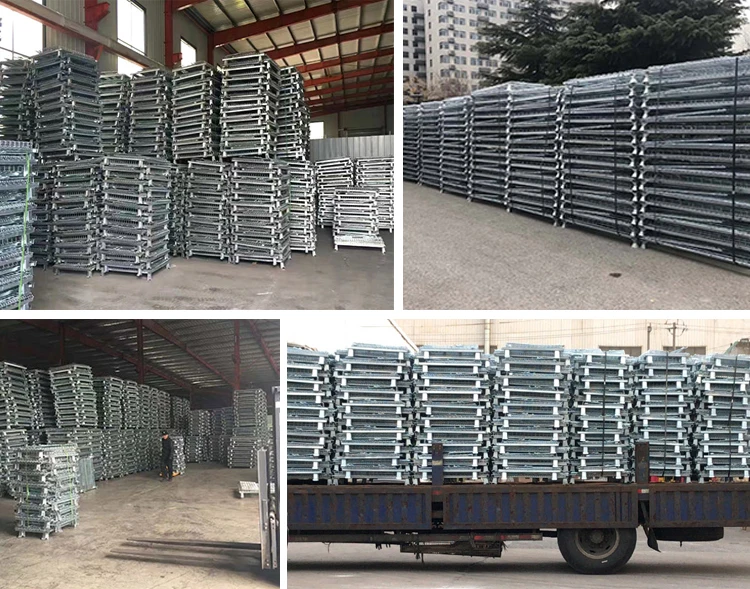

WORKSHOP SHOW

1. Mesh 2.Plate

Code	Length (mm)	Width(mm)	Height (mm)	Mesh size	capacity(T)	Weight(KG)	Surface treatment
050000244	800	600	640	*5050**	0.8	28	Cold galvanizing
050000311	1000	800	850	*5050**	1.0	43.5	Cold galvanizing
050000312	1000	800	850	*50100**	0.8	40	Cold galvanizing
050000313	1200	1000	900	*5050**	1.2	59	Cold galvanizing
050000314	1200	1000	890	*50100**	1	54	Cold galvanizing

Storage Container Feature

01 It is suitable for the tridimensional storage of scattered materials.
02 This product is fully galvanized and has good corrosion ability.
03 Polypropylene hollow sheet (PP plate sheet) can be added to prevent looting.
04 The size of the mesh can be adjusted according to the actual materials to prevent looting.
05 This product can use with rack.
06 Flexible door design, easy access to goods even while stacking.
07 Vertical interlayer can be added to the stillage according to the actual use.E
08 This product can be equipped with one-side open or two-side open top cover according to the actual use
09 Using forklift to stack the racks, increasing utility rate of space.
10 Trundle can be added to the base to facilitate the transfer of goods.
11 Retractor can be added to the base to realize centralized safety turnover of several racks.
12 Stacking can come true whether at full or empty loading condition . It's convenient for storage and transportation

Our Laboratory
The bearing capacity of the base is 1.5 tons, and the maximum stress is186Mpa, which is the stress concentration point. It is located at the weld joint between the support leg and the frame of the base. Most of the rest of the stress is no bigger than 52Mpa, and the allowable stress is less than 235Mpa.
The above figure shows that under the condition of three layers of foldable box, the stress of the bottom layer foldable box column is158Mpa.The yield stress value of the material is less than 235Mpa.
