Reinforcing Mesh for Concrete as4671 standard reinforcing mesh

Name: Reinforcing Mesh for Concrete as4671 standard reinforcing mesh
Brand: AS4671
Price: 350 USD

Best Reinforcing Mesh for Concrete as4671 standard reinforcing mesh wholesale

Brand Name : AS4671

Model Number : Ribbed Square Mesh

Certification : ISO

Place of Origin : China

MOQ : 10tons

Price : 350$-650$/ton

Payment Terms : T/T

Supply Ability : 1000ton per year

Delivery Time : 14 days

Packaging Details : metal pallet

Materials : Q235

Size : 2.4mx6.0m

Standard : Australia 4671

Tensile : MPA550

Contact Now

product	diameter	size of the hole	length	width
SL72	6.75mm	200mm*200mm	5800mm	2200mm
SL92	8.6mm	200mm*200mm	5800mm	2200mm
SL102	9.5mm	200mm*20mm	5800mm	2200mm

We also provide other specifications of the reinforced steel mesh. Please contact me feel free If you have any questions.

Reinforcing Mesh for Concrete as4671 standard reinforcing mesh

Square reinforcing mesh is manufactured from superior quality ribbed steel rebar that is welded together with equal spacing in both directions to form square apertures.

SRM-1: Concrete square mesh from 9.50 mm galvanized deformed steel in 200 mm mesh size.

SRM-2: Concrete square mesh from 6.75 mm galvanized deformed steel in 200 mm mesh size.

Square reinforcing meshes are convenient and economical reinforcement option for modern concrete structures, widely used in construction reinforcement, the ground for the tunnels, bridges, highway, and airport, wharf and wall.

SRM-3: Square mesh overlapped at least 225 mm need be tied by tie wire

Specification of square reinforcing mesh:

Mesh size: 4.80 m × 2.4 m, 3.6 m × 2 m, 2 m × 4 m, 6 m × 2.4 m. Full-size mesh sheets are 6 m × 2.4 m with side lap wires to minimize the laps between sheets on large areas, another in a handy 2 m × 4 m sheet, perfect for smaller jobs like driveways or DIY.
Cross wire and long wire diameter (mm): 6.00, 6.75, 7.60, 8.00, 8.55, 9.50, 10.00.
Mesh opening: 100 mm × 100 mm, 200 mm × 200 mm.
Square mesh lap has to be overlapped tied by tie wire at least 225 mm.

Table 1: Ribbed Wire Reinforcing Square Mesh in Standard 6.0 m × 2.4 m Sheets
Square Mesh 2.4 m × 6.0 m	Long Wire (mm)	Cross Wire (mm)	Approx. Mass (kg/sheet)
SL6502	5.00 @ 200	5.00 @ 200	21
SL6602	6.00 @ 200	6.00 @ 200	33
SL6672	6.75 @ 200	6.75 @ 200	40
SL6762	7.60 @ 200	7.60 @ 200	52
SL6852	8.55 @ 200	8.55 @ 200	65
SL6952	9.50 @ 200	9.50 @ 200	80
SL6102	10.00@ 200	10.00@ 200	105

Table 2: Standard Square Mesh in A Convenient 4.0 m × 2.0 m Sheet Size
Square Mesh 4.0 m × 2.0 m	Long Wire (mm)	Cross Wire (mm)	Approx. Mass (kg/sheet)
SL4602	6.00 @ 200	6.00 @ 200	18
SL4672	6.75 @ 200	6.75 @ 200	23
SL4762	7.60 @ 200	7.60 @ 200	30

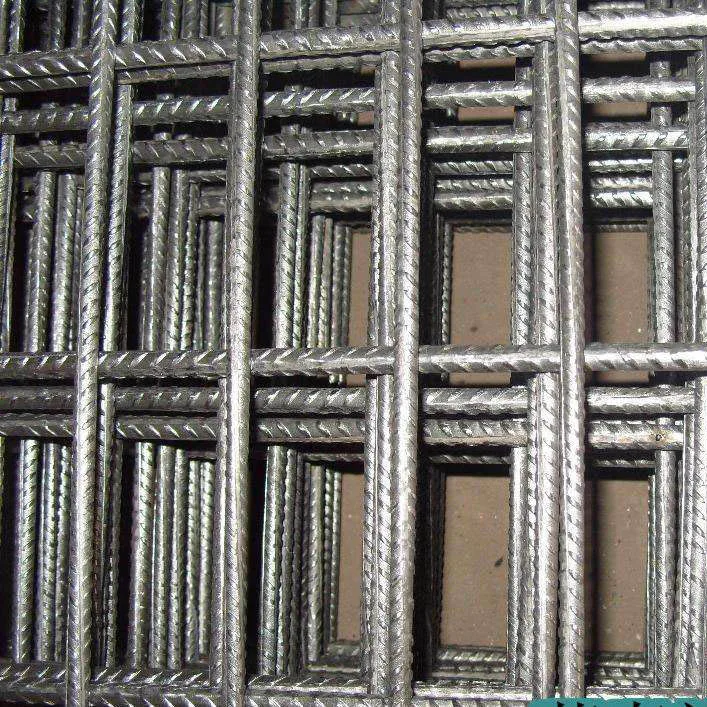

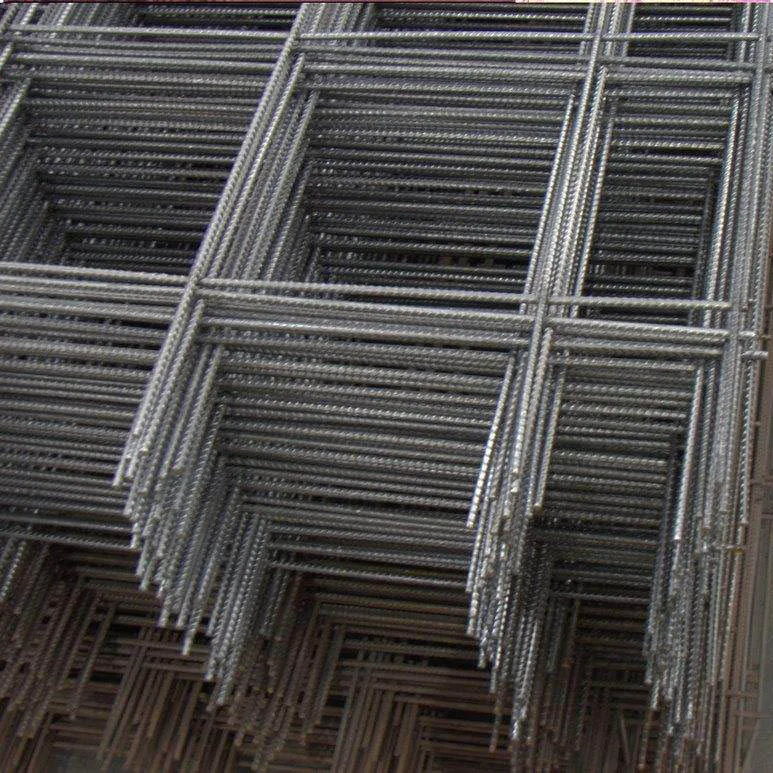

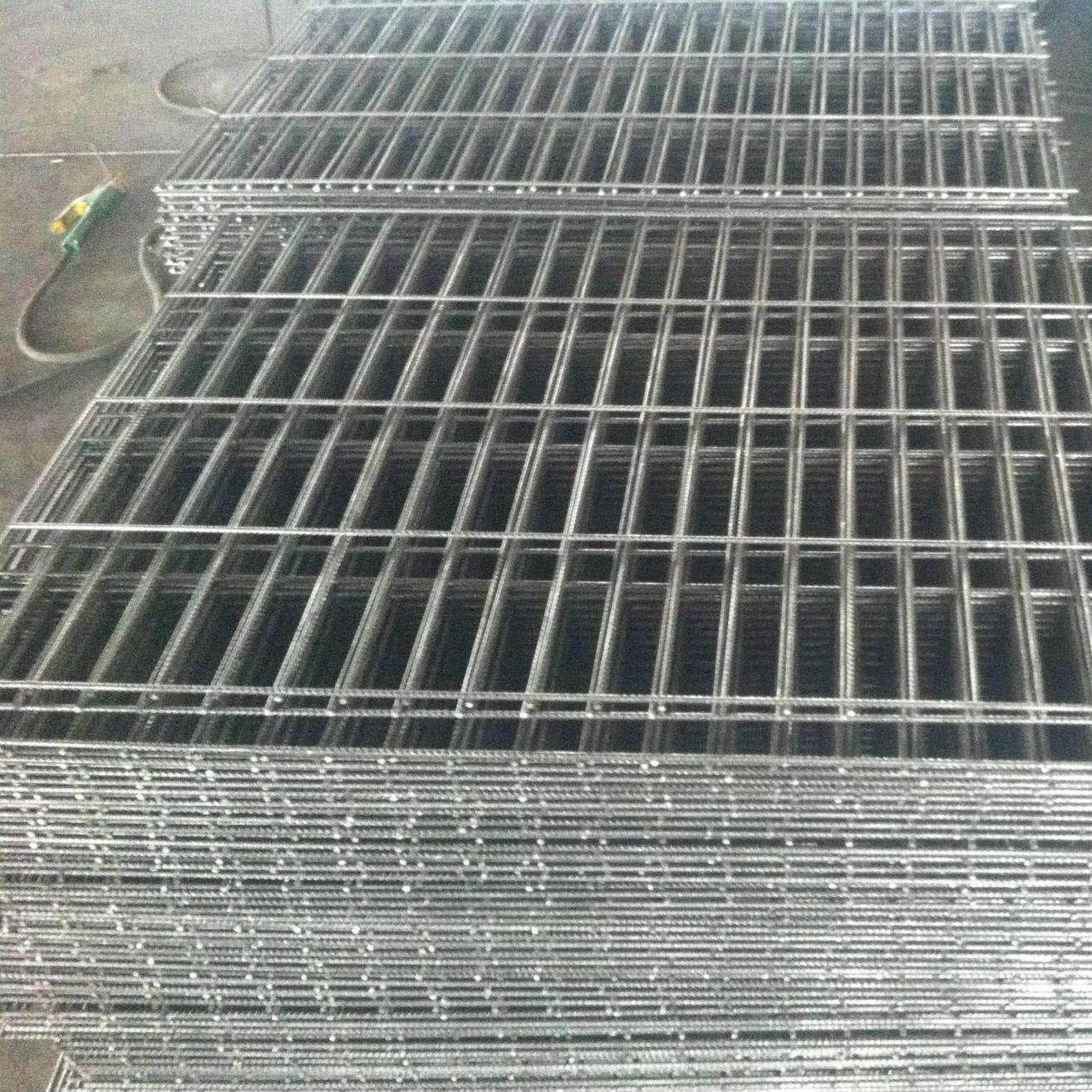

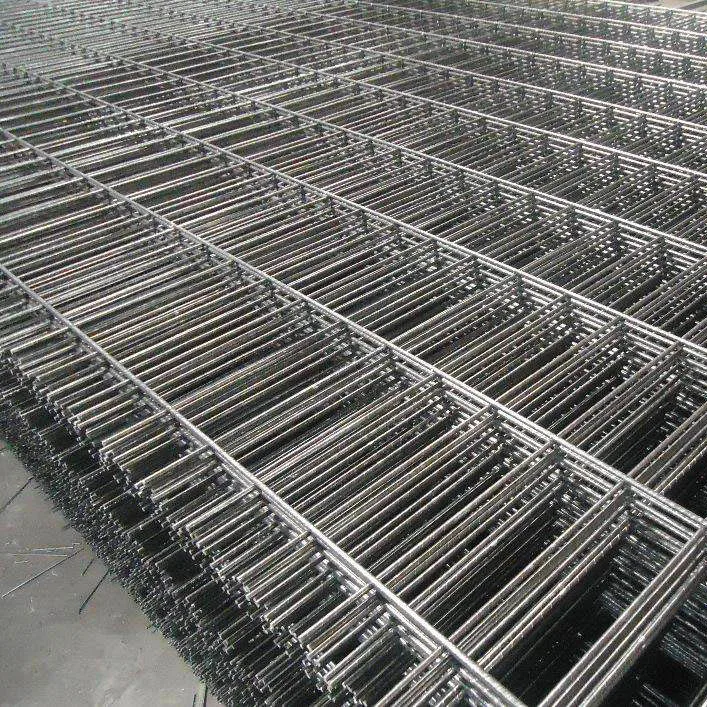

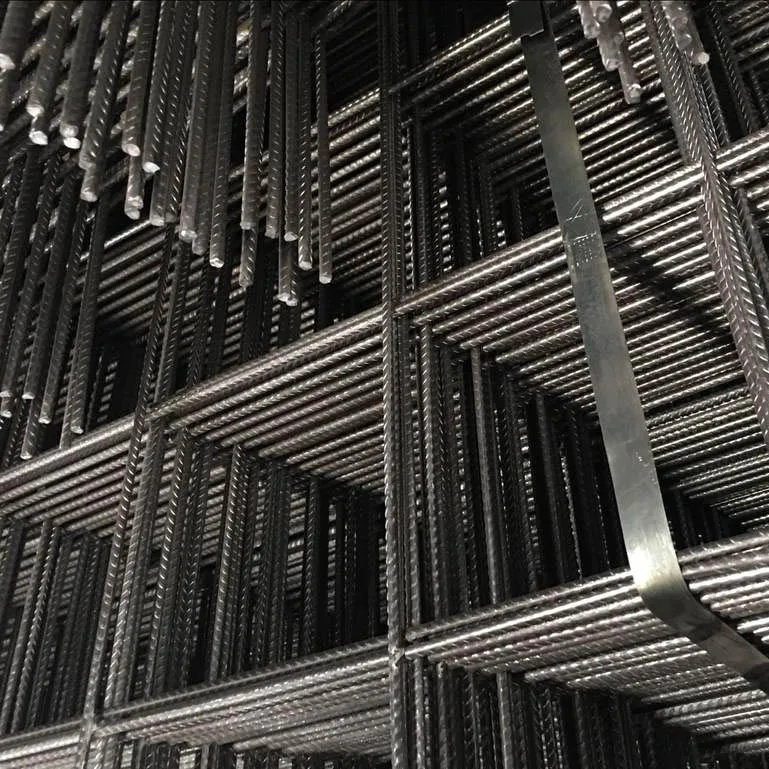

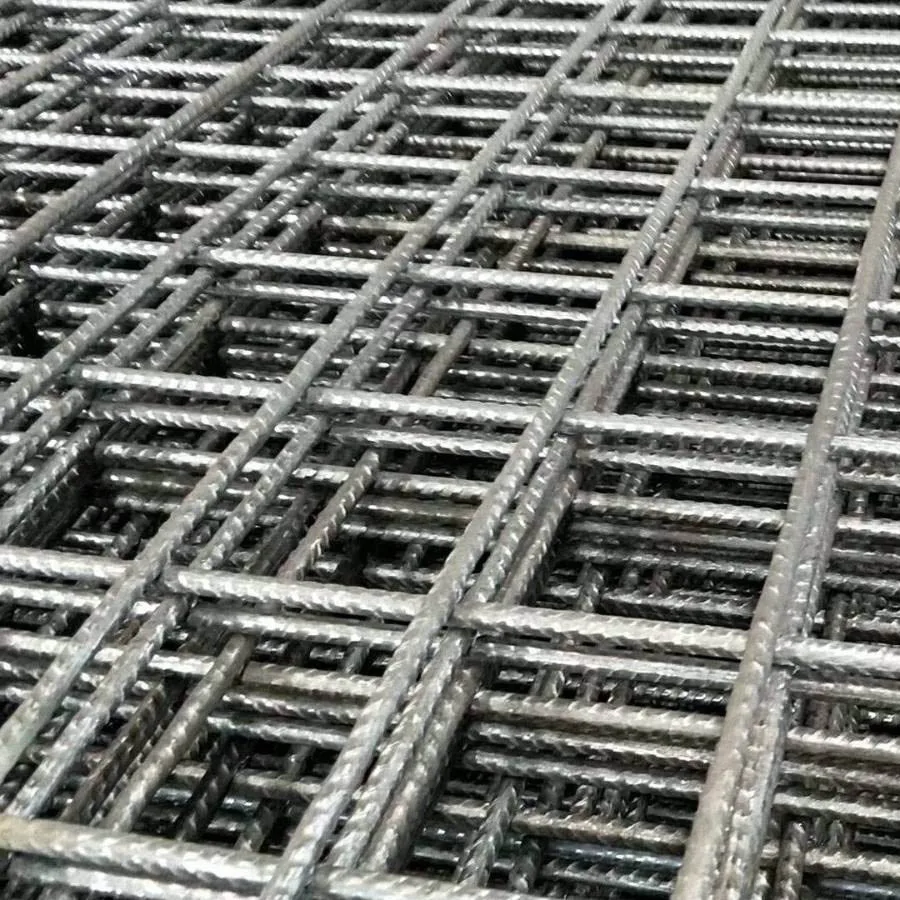

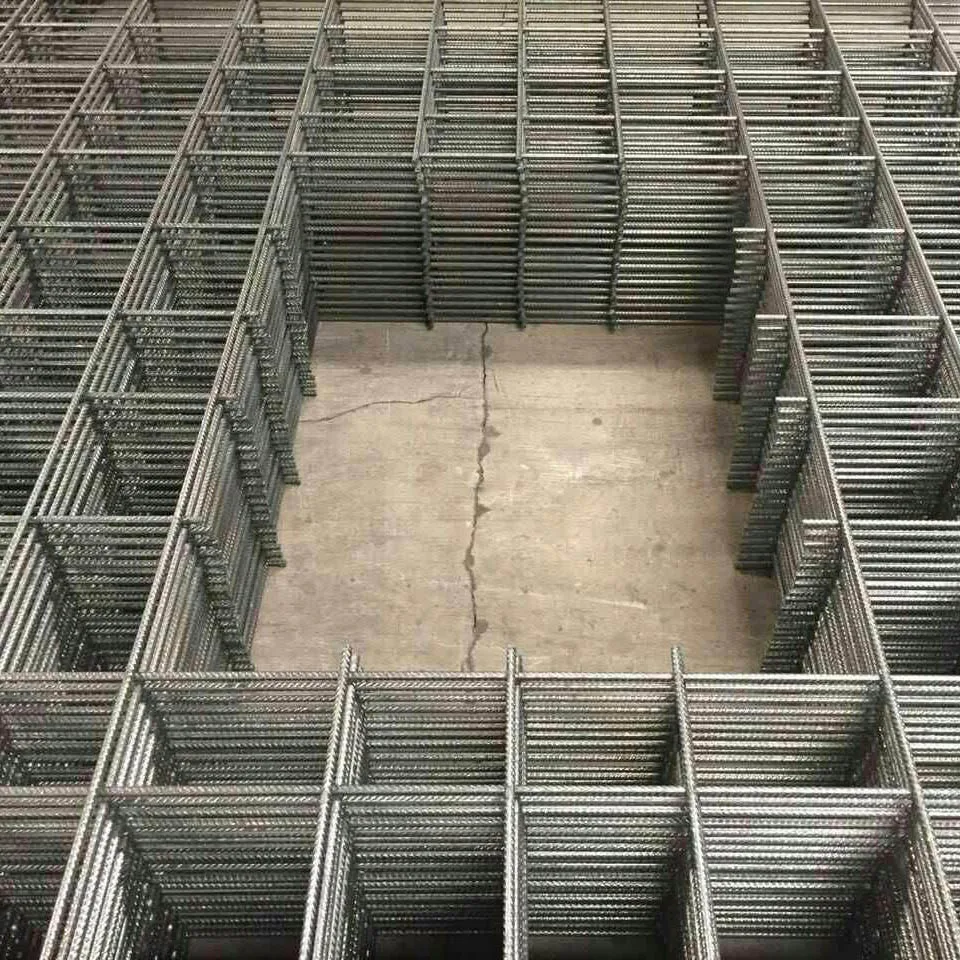

Reinforcing Mesh for Concrete as4671 standard reinforcing mesh Images
